The Hobbywing QuicRun Fusion SE is a compact 2-in-1 brushless motor + ESC system built specifically for 1/10 scale rock crawlers and trail trucks. Featuring FOC technology, ultra-smooth low-speed control, and IP67 waterproofing, it delivers quiet, efficient, and precise crawling performance in any terrain.
Your payment is processed securely through trusted payment gateways.

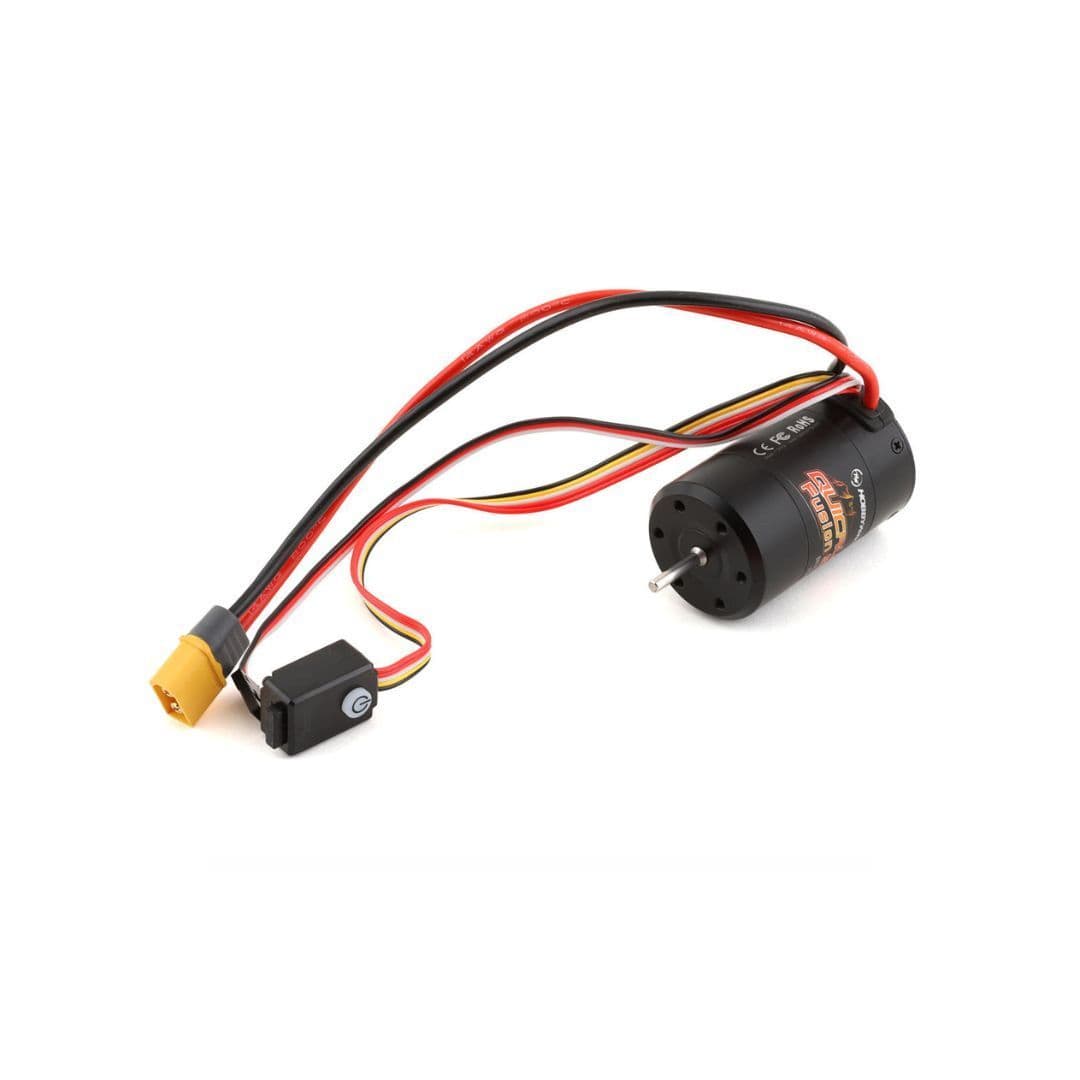

The Hobbywing QuicRun Fusion SE FOC 2-in-1 System combines a brushless motor and ESC into a single, compact unit, drastically reducing wiring complexity and saving space in your crawler chassis. Designed around FOC (Field-Oriented Control) technology, it provides exceptional low-RPM torque, buttery-smooth startup, and unmatched throttle precision—perfect for technical rock crawling and scale trail driving.
Thanks to its sine-wave driving mode, the system runs cooler, quieter, and more efficiently than traditional sensored brushless setups, extending runtime while delivering consistent power. With an IP67 waterproof and dustproof rating, the Fusion SE is ready for mud, snow, water crossings, and harsh trail conditions without compromise.
Advanced crawler-specific features like intelligent torque output, speed closed-loop control, and adjustable active drag brake allow realistic hill-hold, controlled descents, and confident parking on steep slopes. Multiple built-in protections ensure reliability and long service life.
Ideal for builders who want a clean installation, realistic crawling feel, and trusted Hobbywing reliability, the QuicRun Fusion SE is an excellent upgrade for any 1/10 crawler or trail rig.
2-in-1 Integrated Design – Brushless motor with built-in ESC for compact, clean installations
FOC Technology – Ultra-smooth low-speed control and strong crawling torque
Sine-Wave Drive Mode – Quieter operation, lower heat, and improved efficiency
IP67 Waterproof & Dustproof – Ready for mud, snow, water, and extreme trails
Active Drag Brake Adjustment – Strong hill-hold and realistic downhill control
Intelligent Torque Output – Cruise control and slow descent simulation
Multiple Safety Protections – Low-voltage, overheat, throttle loss, and lock-up protection
XT60 Connector Pre-Installed – Plug-and-play convenience
LED Program Box Compatible (sold separately)
| Feature | Details |
|---|---|
| Application | 1/10 Scale Rock Crawler / Trail Truck |
| Motor KV | 1200Kv |
| Motor Size | 540 Spec |
| Motor Poles | 4 |
| Waterproof Rating | IP67 |
| Continuous Current | 40A |
| Input Voltage | 2–3S LiPo / 6–9 Cell NiMH |
| Motor Diameter | 36mm |
| Motor Length | 58.1mm |
| Shaft Diameter | 3.175mm |
| Shaft Length | 16.5mm |
| Input Wires | 14AWG (200mm) |
| Connector | XT60 (Factory Installed) |
| Programming | LED Program Box (Sold Separately) |
| Program Port | Independent Interface (Switch Position) |
| Weight | 201g (Including Wires & Connector) |

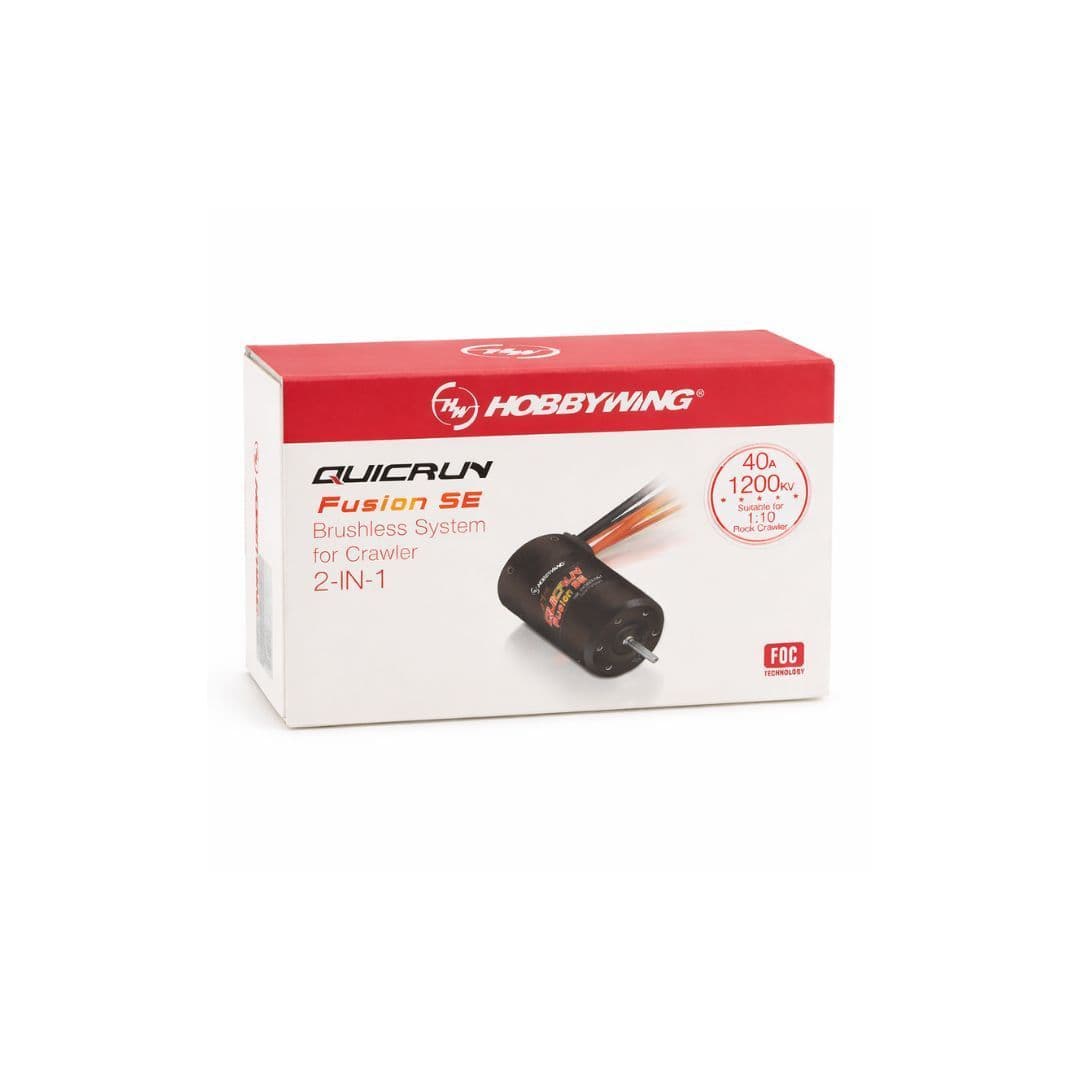

1 × Hobbywing QuicRun Fusion SE FOC 2-in-1 Brushless ESC & Motor System (1200Kv, 540 Spec)
Designed for 1/10 scale crawlers & trail trucks
LED Program Box (HWA30501003) required for parameter tuning (sold separately)
Ideal for scale rigs, rock crawlers, and expedition builds
