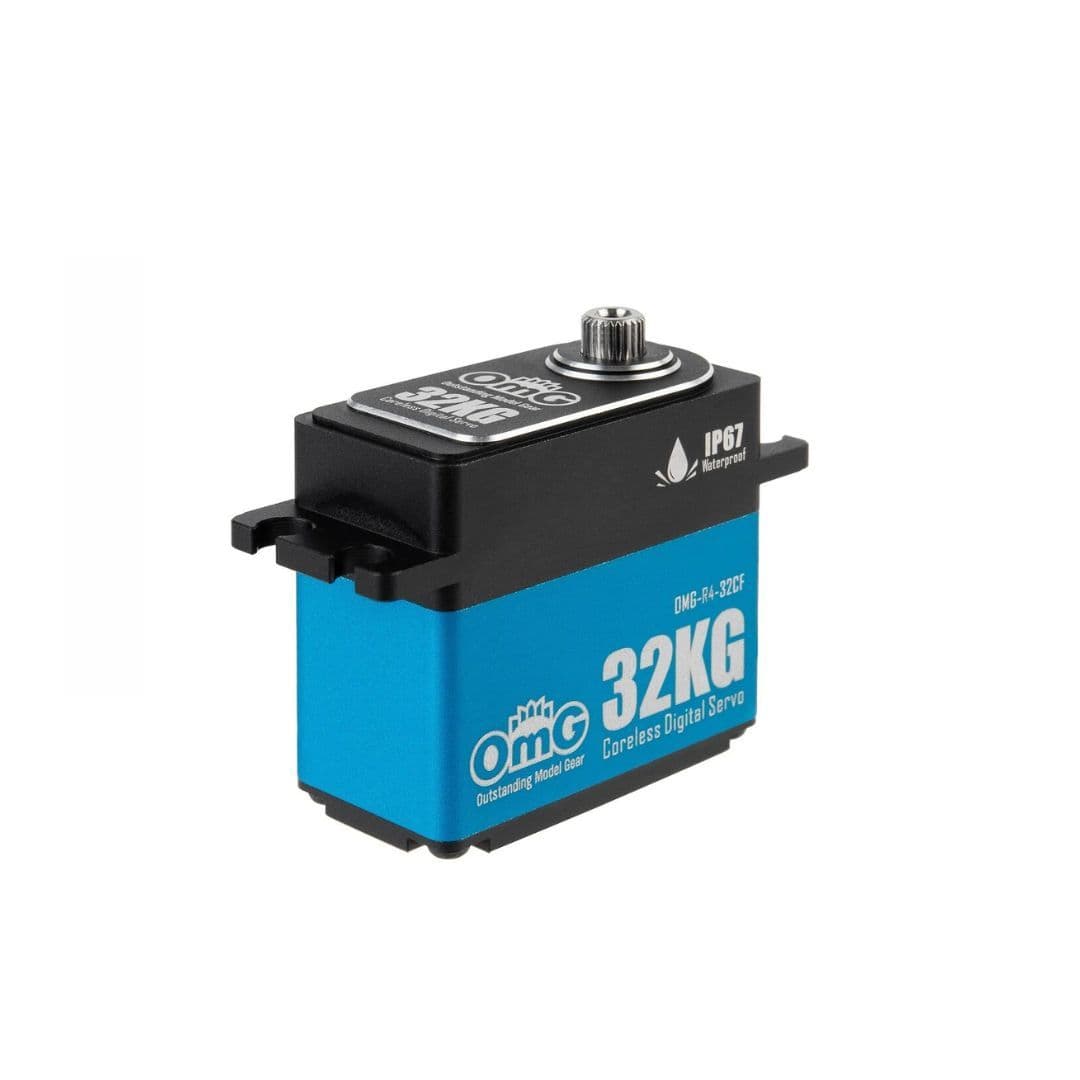

The OMG R4-32CF 32KG Servo is a high-performance brushless coreless digital servo with IP67 waterproof rating, delivering up to 32kg torque for 1/8 and 1/10 RC crawlers, trucks, and buggies.
Your payment is processed securely through trusted payment gateways.
Take your RC performance to the next level with the OMG R4-32CF 32KG High Voltage Digital Servo, designed for serious RC enthusiasts who need maximum torque, precision, and durability.
This servo features a brushless coreless motor, providing faster response, higher efficiency, and longer lifespan compared to standard brushed servos. With an impressive 32kg-cm torque at 8.4V, it delivers powerful and precise steering—perfect for heavy crawlers, large-scale trucks, and high-performance builds.
The full CNC-machined metal case ensures excellent heat dissipation and structural strength, while the stainless steel gears offer superior durability under extreme loads.
With an IP67 waterproof rating, this servo is built to perform in mud, water, rain, and harsh terrains, making it ideal for Indian off-road conditions.
⚠️ Note: This servo is non-programmable (OMG-ST-32CF cannot be programmed).
High Torque: Up to 32kg-cm @ 8.4V
Brushless Coreless Motor for fast response & efficiency
Full CNC metal case for durability & cooling
Stainless steel gears for heavy-duty performance
IP67 Waterproof – suitable for all weather conditions
High voltage support (7.4V–8.4V)
Standard 25T spline compatibility
Non-programmable design for plug-and-play use
Operating Voltage: 7.4V – 8.4V
Speed:
0.089 sec/60° @ 7.4V
0.083 sec/60° @ 8.4V
Torque:
29kg-cm @ 7.4V
32kg-cm @ 8.4V
Motor Type: Brushless Coreless
Gear Material: Stainless Steel
Case Material: Full CNC Metal
Spline: 25T (Φ5.9)
Size: 40 × 20 × 38 mm
Weight: 77g
Bearings: 2 Ball Bearings (2BB)
Operating Angle: ~180°
Frequency: 1520μs
Refresh Rate: 333Hz
Pulse Width Range: 500–2500μsec
Dead Band Width: 2μsec
Wire Length: 300mm
Operating Temperature: -15°C to +70°C
Waterproof Rating: IP67
Suitable for:
1/10 RC Crawlers & Trail Trucks
1/8 RC Cars & Trucks
Heavy-duty builds and high-performance setups
RC vehicles and large-scale models (including planes above 60CC)
1 × OMG R4-32CF 32KG Digital Servo (Blue)

OMG R4-32CF 32KG Waterproof Brushless Coreless Digital Servo (Blue) – High Voltage Servo for 1/8 & 1/10 RC Cars
₹9799
