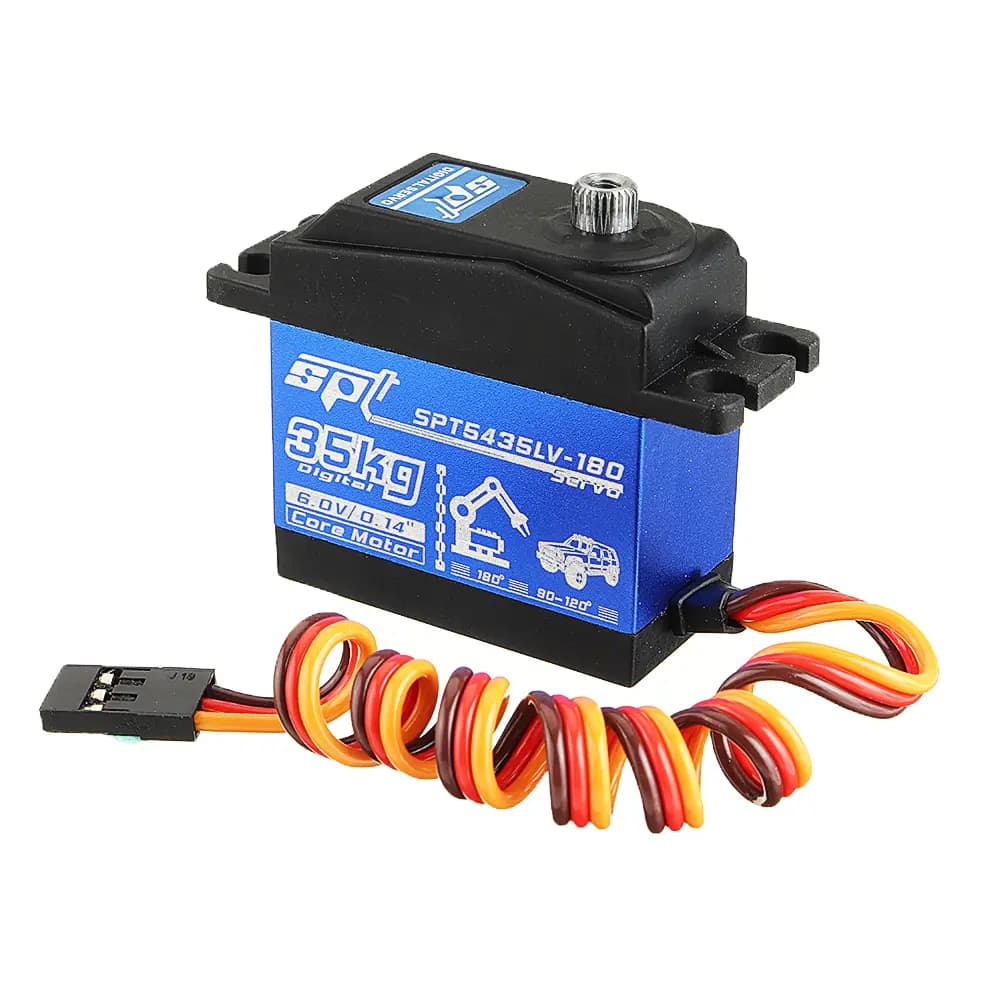

SPT Servo SPT5435LV-180W 35KG Waterproof Metal Gear Digital Servo (180°) for RC Cars

Upgrade your RC performance with the SPT SPT5435LV-180W 35KG Digital Servo, designed for high torque, precision control, and durability.

Built with all-metal gears and dual ball bearings (2BB), this servo delivers smooth, powerful steering performance, making it ideal for heavy-duty RC applications like crawlers, off-road trucks, and robot arms.

With a maximum torque of up to 35KG.cm at 6V, it ensures strong and reliable steering even under extreme loads. The waterproof construction allows you to confidently drive in mud, water, and rough environments without worrying about damage.

The servo supports a wide 180° rotation (PWM control) and features a high-speed response, ensuring accurate and responsive handling.

Key Features

• Model: SPT5435LV-180W
• Type: Digital Servo (180° Rotation)
• Torque:
  • 29KG.cm @ 4.8V
  • 35KG.cm @ 6.0V
• Speed:
  • 0.16 sec/60° @ 4.8V
  • 0.14 sec/60° @ 6.0V
• Voltage Range: 4.8V – 6.0V (BEC ≥ 3A recommended)
• Gear Type: Full Metal Gear
• Bearings: Dual Ball Bearings (2BB)
• Waterproof: Yes
• Control Signal: 1500μs / 330Hz
• Dead Band: 4μs
• Connector: JR Plug (260mm wire)
• Dimensions: 40.5 × 20 × 40.5 mm
• Weight: ~62g

Highlights

• Ultra High Torque (35KG) – Perfect for heavy RC crawlers
• Waterproof Design – Drive confidently in any terrain
• Full Metal Gear Build – Long-lasting durability
• Fast Response Time – Smooth and precise steering
• 180° Wide Angle Support – More flexibility for custom setups

Applications

• RC Crawlers (1/10, 1/8 scale)
• RC Trucks & Off-road Vehicles
• Robotic Arms & DIY Projects
• Steering upgrades for high-torque builds

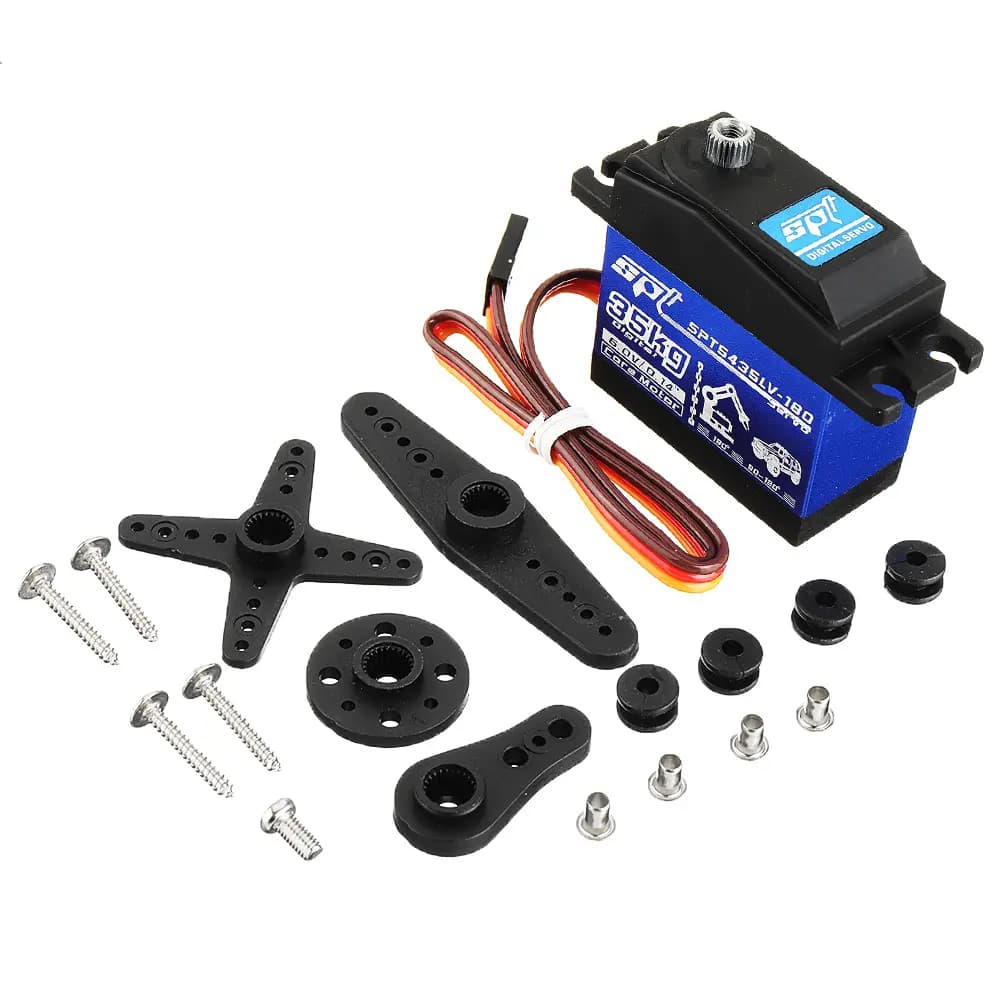

Package Includes

• 1 × SPT SPT5435LV-180W Digital Servo
• 1 × Servo Arm Set
